The four main components we can measure

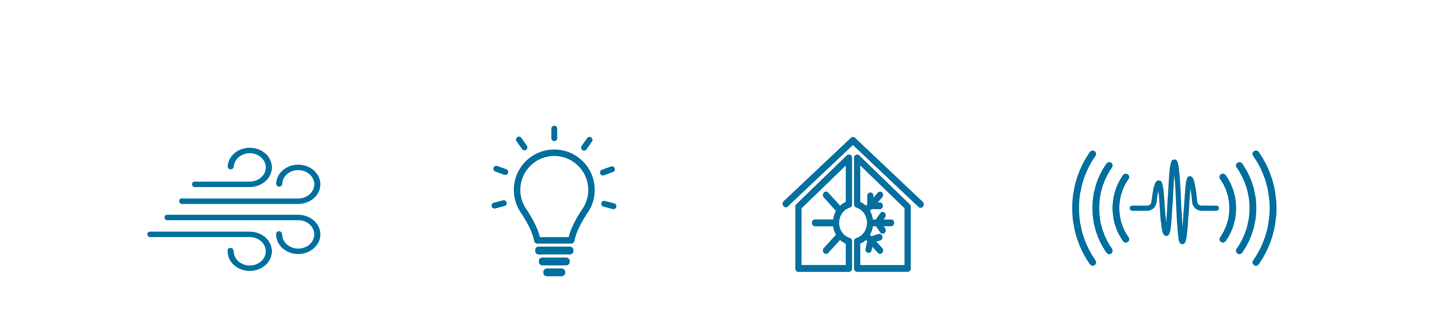

As you can see in the image below there are four main factors that we take into consideration when trying so see if we have a good indoor climate or not:
All of these combined impact how we feel when spending time indoors. By measuring each of these factors it is possible to gain a good understanding of the inside environments that we spend so much time in.
Temperature is one of the main factors of how we experience the indoor climate.
We often talk about the range of different temperatures when indoors, it can be either too hot, or too cold or maybe just right.
Dry temperature is what we usually talk about as temperature and which is measured with a standard thermometer. We can also describe the temperature as 'hot and muggy' or a hot heat — these decsriptions have a lot to do with the humidity as much as the temperature.
Humidity is one of the most important indoor parameters that affects our air quality as well as the well-being and health of people in indoor environments. Moisture, particularly in cold climates, is most often related to problems such as moisture damage with mold and bad smells. This is caused by poor ventilation that creates too high humidity.
Low humidity also creates problems especially for people such as dry eyes, dry skin, dry mucous membranes and some seasonal infection such as influenza.
For example, in Nordic climates, the indoor humidity is often as low as 5-20%, this is considered extremely dry and has a negative effect on our well-being and health. Science says that an optimal indoor climate should have a relative humidity (RH) between 30-60%.
More about humidity
If you are interested in more knowledge related to humidity, here are some interesting reading for you:
Volatile organic compounds (VOCs)
The number of different pollutants can be counted in the thousands, which makes it impractical to measure them individually, instead they are usually referred to as a group of substances called volatile organic compounds or VOCs for short.
Carbon dioxide concentrations & effects on people
The amount of carbon dioxide in a building is usually related to how much fresh air is being brought into that building. In general, the higher the CO2 level in the building, the lower the amount of fresh air exchange. Therefore, examining levels of CO2 in indoor air can reveal if the indoor environment is good.
|Average outdoor air level.
|400 - 1,000 ppm
|Typical level ranges found in occupied spaces with good air exchange.
|1,000 - 2,000 ppm
|Level associated with complaints of drowsiness and poor air, often resulting in low performance.
|This is the permissible exposure limit for daily workplace exposures.
|Above 30,000 ppm
|Very harmful, hazard and lethal levels.
Researchers from the Lawrence Berkeley National Laboratory found that even moderately elevated levels of indoor carbon dioxide resulted in lower scores on six of nine scales of human decision-making performance.
Watch: Visualising the Invisible — Acoustics
Lecturers: Tony Olsson & Martin Ottersten
Webinar recording from Swegon Air Academy, 2022.
In this video you will learn all about how acoustics forms a key part of indoor environmental quality and ventilation.
- Why acoustics is a cornerstone within indoor environmetal quality (IEQ)?
- How sound affects our health and well being as well as productivity?
- Acoustic demands of today and how to interpret them.
- Research and development looking forward.
